What is the pressure repeatability of a capsule pressure gauge?

Pressure measurement is a critical aspect of various industrial and commercial applications, from HVAC systems to process control in manufacturing plants. Among the many types of pressure gauges available, capsule pressure gauges stand out for their suitability in measuring low pressures. One of the key performance indicators of a capsule pressure gauge is its pressure repeatability. In this blog, as a supplier of capsule pressure gauges, I'll delve into what pressure repeatability means, why it's important, and how our products perform in this regard.

Understanding Pressure Repeatability

Pressure repeatability refers to the ability of a pressure gauge to provide consistent and identical measurements when subjected to the same pressure value multiple times. In other words, if you apply a specific pressure to a gauge, take a reading, release the pressure, and then re - apply the same pressure, the gauge should give the same reading within a certain tolerance.

This concept is closely related to the accuracy of a pressure gauge, but they are not the same. Accuracy refers to how close a measurement is to the true value of the pressure, while repeatability is about the consistency of measurements over multiple trials. A gauge can be inaccurate but still have good repeatability, and vice versa.

Why Pressure Repeatability Matters

In many applications, consistent pressure measurement is as important as accurate measurement. For example, in a chemical process where a specific low - pressure environment is required for a reaction to occur, inconsistent pressure readings can lead to variations in the reaction rate, product quality, and even safety hazards.

In HVAC systems, proper pressure control is essential for efficient operation. If the pressure gauge cannot provide repeatable readings, it can result in improper adjustment of the system, leading to increased energy consumption and reduced lifespan of the equipment.

Factors Affecting Pressure Repeatability in Capsule Pressure Gauges

Several factors can influence the pressure repeatability of capsule pressure gauges:

Material Properties

The materials used in the construction of the capsule play a crucial role. The capsule is the sensing element in a capsule pressure gauge, and its elasticity and mechanical properties determine how it responds to pressure changes. If the material has poor fatigue resistance, it may deform over time, leading to inconsistent readings. Our capsule pressure gauges are made from high - quality materials that are carefully selected to ensure excellent mechanical stability and long - term repeatability.

Manufacturing Precision

The manufacturing process also affects repeatability. Precise machining and assembly are required to ensure that the capsule and other components of the gauge are properly aligned and calibrated. Any small deviation in the manufacturing process can lead to variations in the gauge's response to pressure. Our state - of - the - art manufacturing facilities use advanced techniques and strict quality control measures to ensure that each gauge meets the highest standards of precision.

Environmental Conditions

Temperature, humidity, and vibration can all impact the performance of a capsule pressure gauge. For example, changes in temperature can cause the material of the capsule to expand or contract, affecting its sensitivity and repeatability. Our gauges are designed to minimize the effects of environmental factors. They are equipped with temperature - compensating mechanisms and robust housing to protect them from external vibrations.

How Our Capsule Pressure Gauges Ensure Good Pressure Repeatability

We take several steps to ensure that our capsule pressure gauges offer excellent pressure repeatability:

High - Quality Components

We source the best materials for our gauges. The capsules are made from high - grade stainless steel, which has excellent corrosion resistance and mechanical properties. The movement mechanism, which transfers the motion of the capsule to the pointer, is also constructed from high - precision components to ensure smooth and consistent operation.

Rigorous Testing

Each gauge undergoes a series of rigorous tests before leaving our factory. We test the repeatability of the gauges by subjecting them to multiple pressure cycles at different pressure levels. Only gauges that meet our strict repeatability criteria are approved for sale.

Customized Design

We understand that different applications have different requirements. That's why we offer customized capsule pressure gauges. We can adjust the design parameters, such as the size and shape of the capsule, to optimize the repeatability for specific applications.

Product Range and Repeatability

We offer a wide range of capsule pressure gauges to meet the diverse needs of our customers. Here are some of our popular products:

• Back Connection All SS Case Low Pressure Gauge: This gauge features a back - connection design and an all - stainless - steel case, making it suitable for applications where space is limited and corrosion resistance is required. It has been tested to provide excellent pressure repeatability in low - pressure environments.

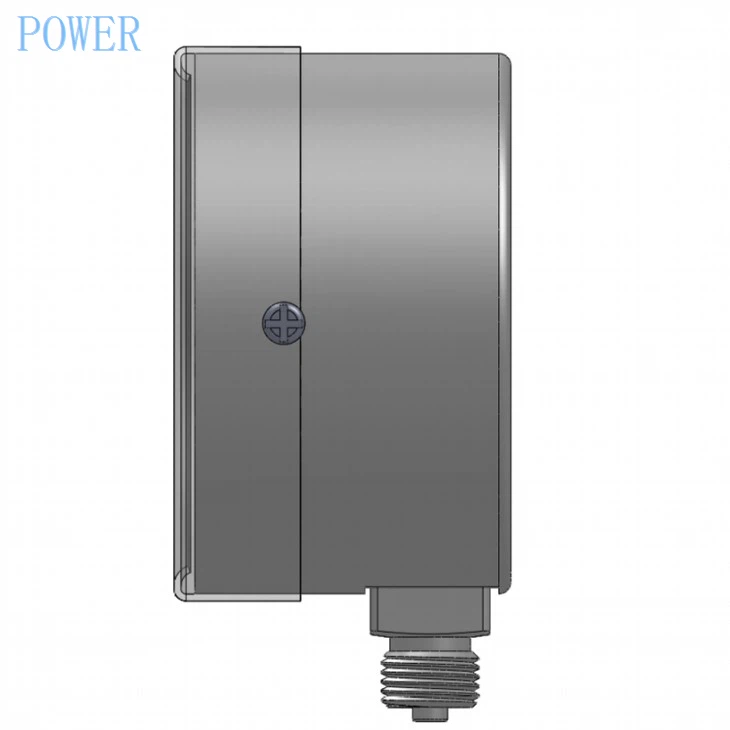

• Bottom Connection Low Pressure Gauge: With a bottom - connection design, this gauge is easy to install in various systems. It is designed to offer consistent and repeatable pressure measurements, making it a reliable choice for many low - pressure applications.
• Bottom Connection All SS Case Low Pressure Gauge: Combining the advantages of a bottom - connection design and an all - stainless - steel case, this gauge is ideal for harsh environments. It provides excellent protection against corrosion and mechanical damage while maintaining high - level pressure repeatability.

Conclusion

Pressure repeatability is a crucial characteristic of capsule pressure gauges, and it plays a vital role in ensuring the proper operation of many industrial and commercial systems. As a supplier of capsule pressure gauges, we are committed to providing our customers with products that offer excellent pressure repeatability. Our high - quality materials, precise manufacturing processes, and rigorous testing ensure that our gauges can meet the most demanding requirements.

If you are in need of a reliable capsule pressure gauge with good pressure repeatability, we invite you to contact us for procurement and further discussions. Our team of experts is ready to assist you in selecting the right product for your specific application.

References

• ASME PTC 19.2 - 2010, Pressure Measurement
• ISO 5167 - 1:2003, Measurement of fluid flow by means of pressure differential devices inserted in circular cross - section conduits running full - Part 1: General principles and requirements
• BS EN 837 - 1:1996, Pressure gauges - Part 1: Bourdon tube pressure gauges - Dimensions, metrology, requirements and testing
