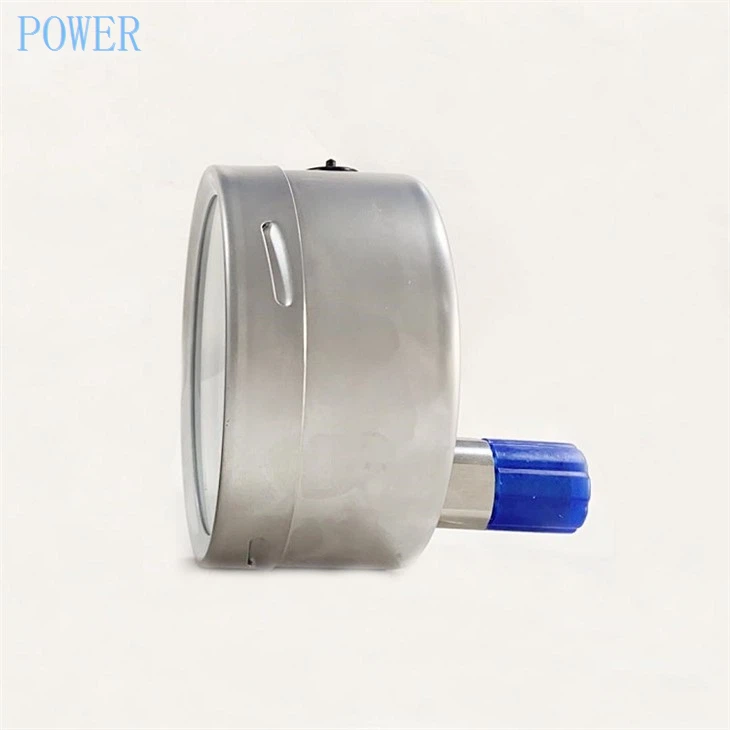

Back Connection All SS Case Low Pressure Gauge
All stainless steel material, suitable for micro pressure measurement (pressure range from 0.25kPa to 60kPa)
with the corrosive medium
Description
All stainless steel material, suitable for micro pressure measurement (pressure range from 0.25kPa to 60kPa)
with the corrosive medium
Technical Parameters
|
Product name |
4inch-100mm lower back mounting Low pressure gauge |
|
Model number |
YE-100D |
|
Diameter size |
(1.5")40mm; 2"(50mm); 2.5"(63mm); 3.5"(75mm); 4"(100mm); 4.5"(125mm);6"(150mm); 8"(200mm); 10"(250mm) etc. |
|
Case/cover |
Stainless steel case |
|
Window |
General glass |
|
Connection |
Brass Back (bottom/back with clamp or flange etc.) |
|
Thread |
G/PT/NPT 1/8;1/4;1/2;M14x1.5;M20x1.5 ,ect |
|
Bourdon tube |
Bellows |
|
Movement |
brass |
|
Dial plate |
aluminum |
|
Pressure range |
0.25kPa – 100kPa |
|
Accuracy |
2.5%;1.0% |
|
Liquid filling |
/ |
|
Liquid |
/ |
Ranges
Range for Dial 2½", 3'': 1 kPa – 100kPa
Range for Dial 4'', 6'': 0.25kPa – 100kPa
temperature
Ambient: -22°C to +70°C
Medium: 100°C
cooperation
Packing
