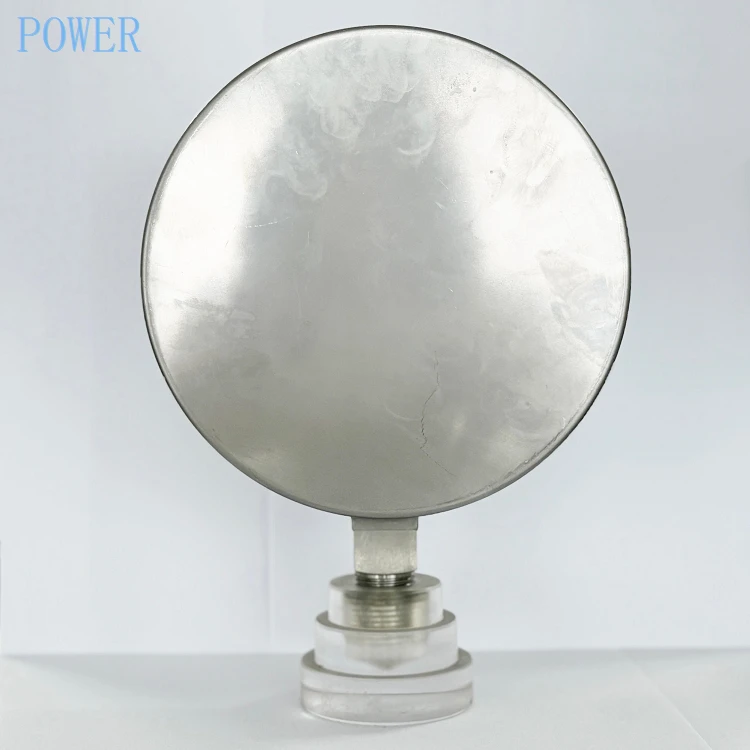

Safety Patten Dial 160mm Solid Front Pressure Gauge
With liquid-filled case for applications with high dynamic pressure pulsations or vibration
Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system
Process industry: chemical/petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction
Description
- With liquid-filled case for applications with high dynamic pressure pulsations or vibration
- Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system
- Process industry: chemical/petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction
Technical Parameters
|
Product name |
6inch-160mm Safety pattenSolid front pressure gauge |
|
Model number |
YBF-160A |
|
Diameter size |
2.5"(63mm); 3.5"(75mm); 4"(100mm); 4.5"(125mm)6"(150mm); |
|
Case/cover |
Stainless steel case |
|
Window |
Safety glass |
|
Connection |
Stainless steel bottom (back/back with clamp /bottom etc.) |
|
Thread |
G/PT/NPT 1/8;1/4;1/2;M14x1.5;M20x1.5 ,ect |
|
Bourdon tube |
Stainless steel |
|
Movement |
Stainlesss steel |
|
Dial plate |
aluminum |
|
Pressure range |
-0.1Mpa~25Mpa |
|
Accuracy |
1.0%;0.5% |
|
Liquid filling |
Yes |
|
Liquid |
Dry;Glycerin;Silicon oil |
Special Features
- Solid-front stainless steel case
- Excellent load-cycle stability and shock resistance
- All stainless steel construction
- Positive pressure ranges to 20,000 psi
cooperation
Packing
