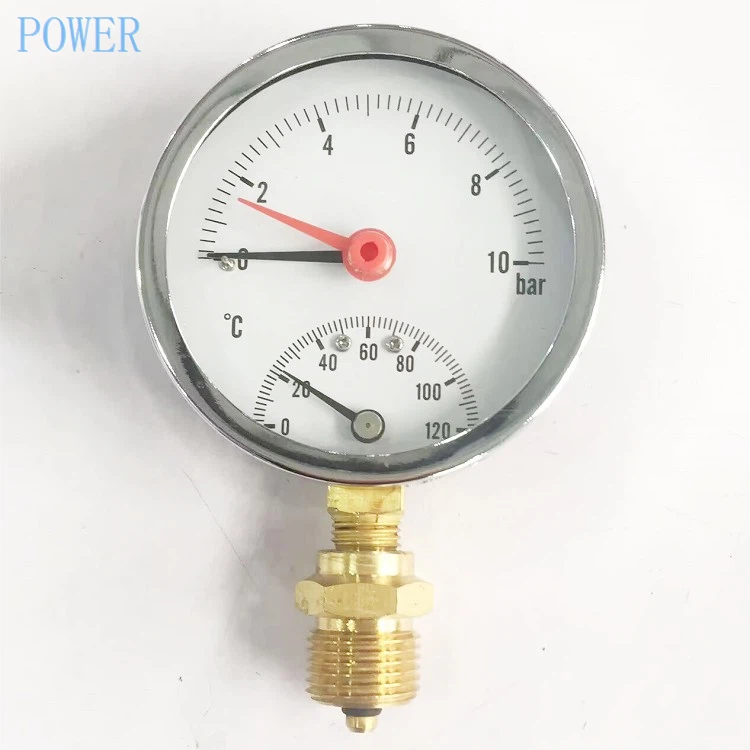

Bottom Connection Bimental Thermomanometer
Applications
■ Use for heating systems
■ Applied for combi-boilers with hot water and heating
Description
Applications
■ Use for heating systems
■ Applied for combi-boilers with hot water and heating
|
Product name |
Bottom connection bimental thermomanometer |
|
Model number |
Y-80A |
|
Diameter size |
1.5"(40mm);2.5"(63mm); 3.5"(75mm); 4"(100mm); 4.5"(125mm)6"(150mm); |
|
Case/cover |
Black steel case |
|
Window |
General glass |
|
Connection |
Brass Bottom(bottom/back with clamp /bottom etc.) |
|
Thread |
G/PT/NPT 1/8;M10X1.customized |
|
Bourdon tube |
brass |
|
Movement |
brass |
|
Dial plate |
Aluminum/plastic |
|
Pressure range |
0-10bar& 0-120℃ |
|
Accuracy |
2.5% |
|
Liquid filling |
No |
|
Liquid |
Dry |
Special features
■ Combined indication for pressure and temperature
■ Scale ranges to 0 ... 10 bar [ 0 ...150 psi] and 0 ...120 °C [32 ... 248 °F]
■ Shut-off valve included in delivery
