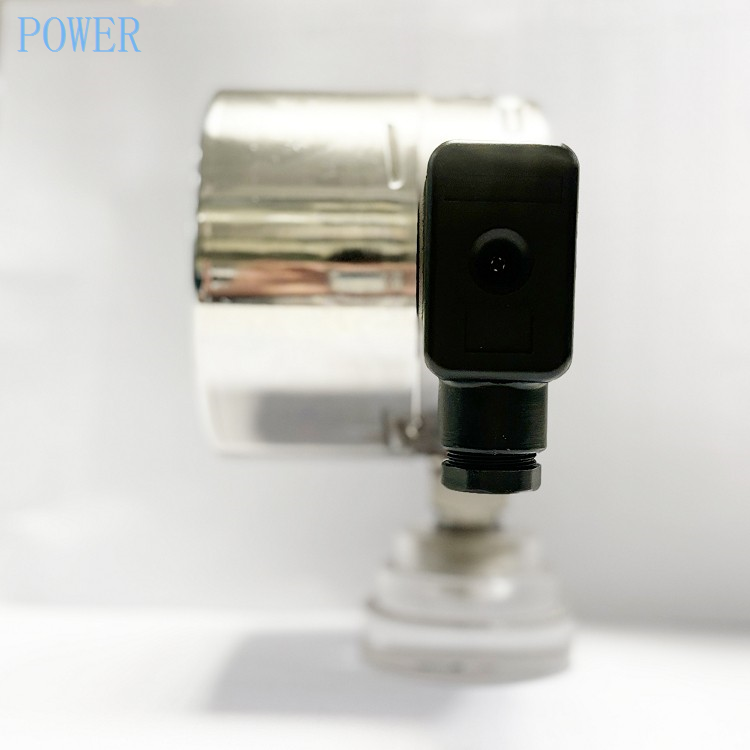

Bottom Connection SF6 Monitoring Gauge

SF6 Gas Density Monitor is mainly used in the power industry. It is matched with sulfur hexafluoride high-voltage circuit breaker, transformer, combined apparatus (GIS), ring network cabinet, inflation cabinet and other equipment. SF6 gas density gauge is used to monitor the gas density in the equipment air chamber (i.e. the pressure at 20 ℃) and can send alarm, locking and other switching signals when the gas density drops to the specified value due to equipment leakage.

These instruments are manufactured to monitor the electrical operations on hermetically sealed systems containing Sulphur Hexafluoride gas (SF6). The indication and the electrical operations are calibrated to the gas density (isochore) according to the relation pressure-temperature. The M5 model is suitable for indoor installation while the M6 model has been designed for the outdoor installation as well. The oil filled executions are particularly suitable for installation when vibrations are apparent.
