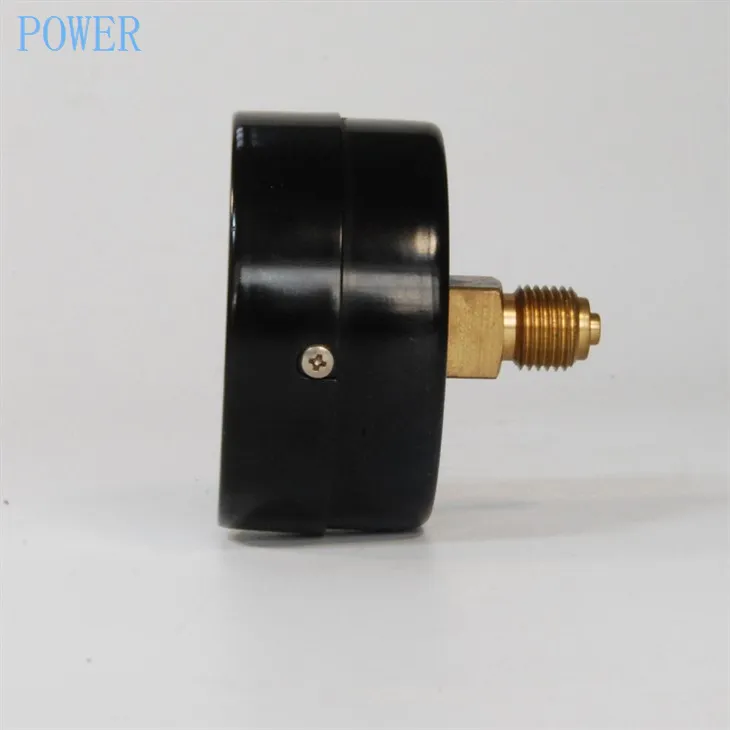

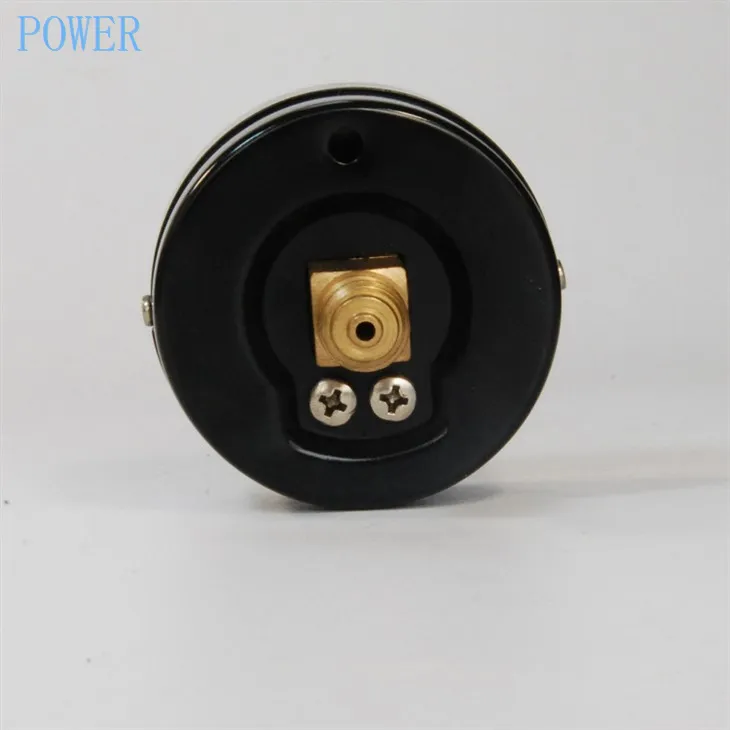

Back Connection Black Steel Case Pressure Gauge
General type model pressure gauge ; with Special Features such as :Stable and commercial，measure the liquid media that will not explode, crystallize, solidify or corrode
Description
General type model pressure gauge ; with Special Features such as :Stable and commercial,measure the liquid media that will not explode, crystallize, solidify or corrode
Technical Parameters
|
Product name |
2.5inch-63mm black steel case brass connection back thread type pressure gauge |
|
Model number |
Y-63D |
|
Diameter size |
(1.5")40mm; 2"(50mm); 2.5"(63mm); 3.5"(75mm); 4"(100mm); 6"(150mm); 8"(200mm); 10"(250mm) etc. |
|
Case/cover |
black steel case |
|
Window |
PC glass |
|
Connection |
brass Back(bottom/back with clamp or flange etc.) |
|
Thread |
G/PT/NPT 1/8 1/4 1/2, M10*1, M14*1.5,M20*1.5 etc. |
|
Bourdon tube |
phosphor bronze |
|
Movement |
brass |
|
Dial plate |
aluminum |
|
Pressure range |
-0.1~100mpa |
|
Accuracy |
1.60%, 2.50% |
|
Liquid filling |
--- |
|
Liquid |
--- |
fAQ
If you have another question, pls feel free to contact us
Ordering information
Pressure gauge model / Dial size / Scale range / Thread size / Mounting type / Optional extras required
Specifications and dimensions give in this leaflet represent the state of engineering at the time of printing.
